Manual controls¶

Audience: operators issuing one-off commands — taring a balance, setting a heater between runs, picking a webcam resolution. Scope: the Manual Control dock, the per-device cards inside it, how commands route to the right place at the right time, and the confirmation dialog that protects destructive operations.

Anatomy¶

The dock is one vertically-stacked, scrollable list of cards. One card per device that advertises any manual-relevant capability.

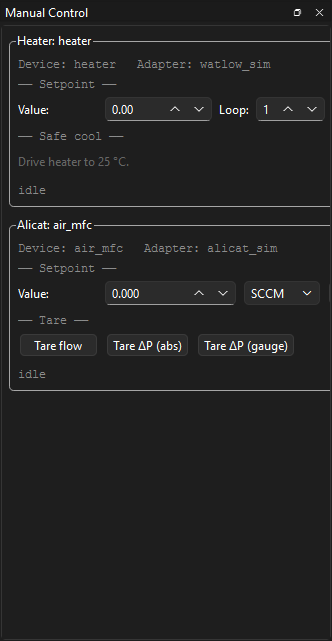

Manual control dock with two cards: Heater "heater" (watlow_sim, setpoint + safe-cool) and Alicat "air_mfc" (alicat_sim, setpoint + tare flow / ΔP). Both show idle status.

┌─ Manual Control ─────────────────────────────────────────────────┐
│                                                                  │
│  ┌─ Balance: balance_main ────────────────────────────────────┐  │
│  │  Last cal: 2026-04-22 14:30 OK                             │  │
│  │  [Tare]   [Zero]   [Internal cal…]   [Save settings…]      │  │
│  │  Filter: [stable    ▾]   Auto-zero: [on ▾]                 │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
│  ┌─ Heater: heater_01 ────────────────────────────────────────┐  │
│  │  PV: 24.6 °C    SP: 25.0 °C                                │  │
│  │  Setpoint: [   25.0  ] °C   [Apply]                        │  │
│  │  [Heat-flux tune…]                                         │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
│  ┌─ MFC: mfc_n2 ──────────────────────────────────────────────┐  │
│  │  Flow: 0.0 sccm   Setpoint: 0.0 sccm                       │  │
│  │  Setpoint: [   0.0   ] sccm   [Apply]                      │  │
│  │  Gas: [N2 ▾]   [Valve hold]   [Reset totalizer…]           │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
└──────────────────────────────────────────────────────────────────┘

The dock can be torn off and re-docked on any edge of the main window.

When no config is loaded:

$Manual control dock empty state: "No config loaded.\n\nOpen a config from File → Open Config…"$

When a config has loaded but no device advertises a manual-control capability:

No devices with manual controls in this config.

How cards appear and disappear¶

The dock rebuilds on every config-load. Cards are gated reflectively on each adapter's Capability flagset. If a device advertises none of the manual-relevant capabilities (HAS_TARE, HAS_ZERO, HAS_INTERNAL_CAL, HAS_PARAMETER_CONFIG, HAS_SETPOINT, HAS_GAS_SELECT, HAS_VALVE_HOLD, HAS_TOTALIZER, HAS_DISPLAY_CONTROL), the device is skipped entirely — no empty card.

If the worker pool is still opening when the dock builds, the cards fall back to the adapter-import-string fingerprint (e.g. sartorius → balance, alicat → MFC) to pick the right card class. They'll repick the right capability set once the pool finishes opening.

The five card classes that ship today:

Card	Devices it matches	Common controls
HeaterCard	Watlow temperature controllers	Setpoint, Heat-flux tune launcher
BalanceCard	Sartorius balances	Tare, zero, internal cal, filter / auto-zero / display unit, save settings
AlicatCard	Alicat MFCs and pressure devices	Flow setpoint, gas select, valve hold, totalizer reset
FlirCard	FLIR IR cameras	Stream format, palette, NUC trigger
WebcamCard	USB / built-in cameras	Resolution, framerate, codec

Routing: where does my command actually go?¶

Cards never dispatch directly. They go through ManualClient, which routes one of two ways depending on the current run state:

When	Routes to	Recorded in bundle?
`IDLE` / `SEALED` / `FAILED` (no run, or run finished)	WorkerPool	No — there is no run. The dispatch shows up in the events dock as a "manual_event" for audit.
`RUNNING`	Conductor	Yes — the command is recorded as an event in `events.sqlite`. The operator id is stamped onto it.
`PREPARING`, `DRAINING`, `FINALIZING` (write-blocked states)	Refused	Card disables its buttons.

During a run, the cards show their write-blocked state inline:

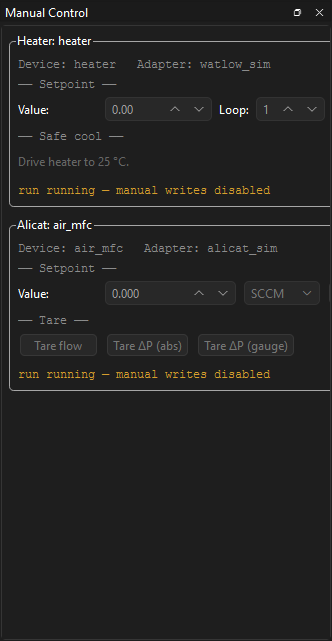

Manual dock during a run: both cards' value spinboxes and action buttons are grayed; the inline status text reads run running — manual writes disabled.

The write-blocked states exist because the conductor doesn't own the workers cleanly during them — PREPARING is opening, DRAINING is disarming, FINALIZING has already handed the bundle to the sealer. Trying to dispatch a manual command in those windows would race the state machine.

If you need to change a setpoint mid-run, the right place is during RUNNING. The card will accept it, the conductor will route it, and the change is captured in the bundle alongside the sample data.

Confirmation for destructive operations¶

Some manual commands physically change the device's stored state in a way that can't be undone by a power cycle. These show a confirmation dialog before dispatching:

Balance: Internal cal, Save settings (writes EEPROM), Reload from EEPROM.
Heater: Save parameters (writes EEPROM).
Alicat: Save calibration (when chosen), Reset totalizer peak-flow watermarks.

The dialog spells out exactly what's about to happen — for example:

Confirm destructive operation:

Trigger internal calibration on balance_main. Requires ~30 s; the balance refuses other commands during the cal cycle.

Proceed?

This is a standard modal QMessageBox — click Yes / No, not hold-to- confirm. (The 1-second hold-to-confirm pattern is used only for the Emergency stop button on the Run tab, where the cost of a misclick is much higher.)

Non-destructive commands (Tare, Zero, setpoint changes, gas select) dispatch immediately on click.

A confirmation in flight:

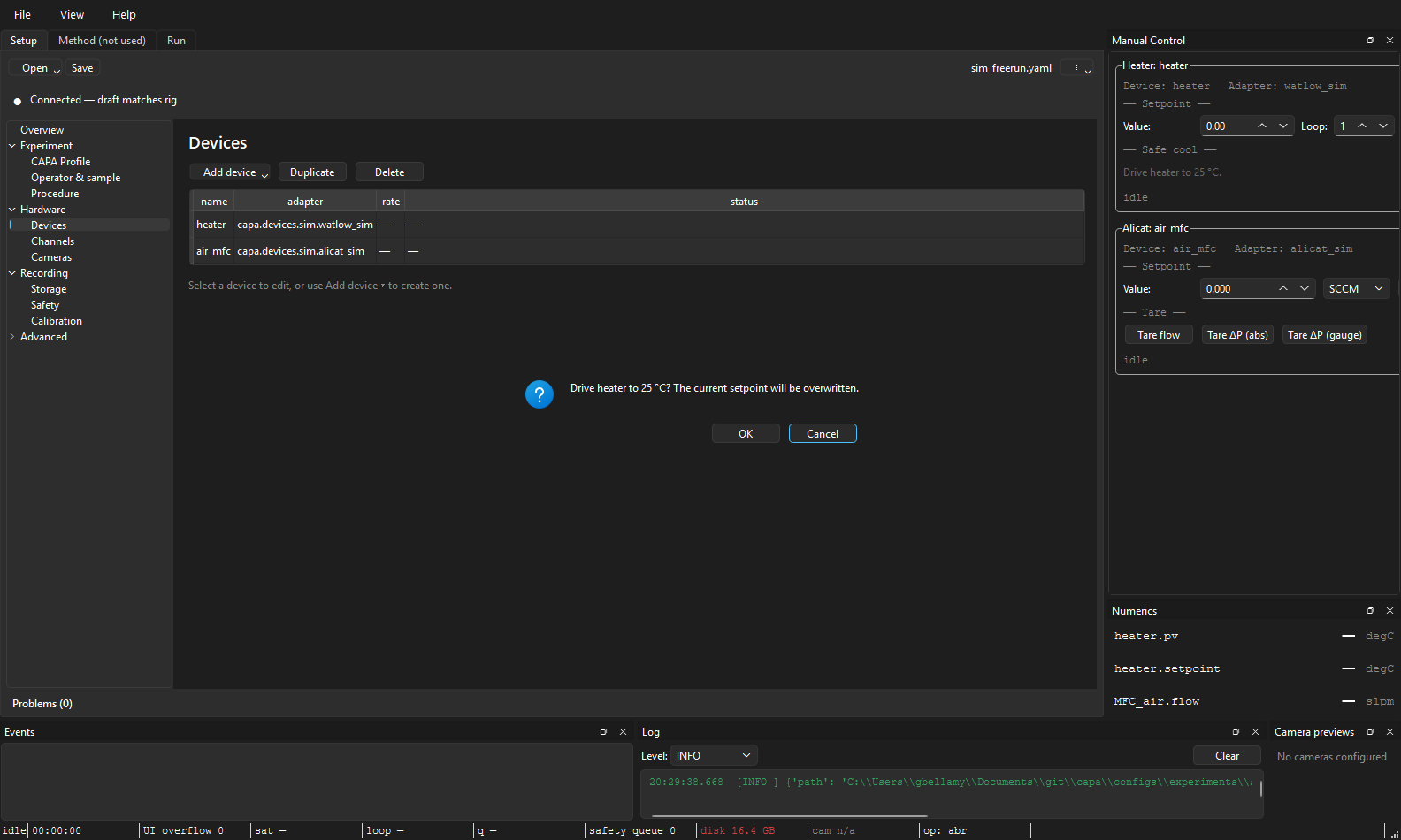

Confirmation dialog: "Drive heater to 25 °C? The current setpoint will be overwritten." with OK / Cancel buttons.

Read-back values¶

Each card shows the device's current state above its controls — a heater card shows PV and SP, a balance shows Last cal: …, an MFC shows the live flow. These refresh:

Once on card open, asynchronously (scheduled when the pool reports ready).
After each successful command, so a Tare immediately repaints the reading.

If the read-back fails (typically because the pool is mid-rebuild after a cold reload), the card logs at debug level and leaves the previous value visible. No banner; the next refresh attempt catches up.

Jumping to a card from the Setup tab¶

In the Setup tab's Devices section, right-click a row → Open manual control. The main window switches to the Run tab, shows the manual dock if it was hidden, and scrolls the named device's card into view (centred in the viewport).

Convenient when you're triaging a device that's misbehaving and don't want to scrub through a long manual-dock scroll.

See also: The Run tab for write-blocked-state gating, The Setup tab for the Devices section that jumps here, Authorization gates and Destructive operations for the safety contract behind the confirmation dialog.
