Aborting safely¶

Audience: operators in a situation where something is wrong. Scope: every abort path, what each guarantees, what state the bundle ends up in, and how to read the manifest afterwards to know what actually happened.

This page tells you what the buttons do. For the underlying safety policy — when the system aborts on its own, what destructive vs. non-destructive means — see safety principles and shutdown sequence.

The three abort paths¶

Path	Surface	What it asks the conductor to do	Recorded `exit_reason`
Stop run	Run-tab button	Graceful shutdown request: set `external_stop`, let the active procedure unwind, disarm workers, finalize bundle.	`operator_safe_shutdown`
Emergency stop	Run-tab hold-to-confirm button (1 s hold)	Same conductor shutdown path, stamped as the fast/immediate operator request.	`operator_immediate`
Force-cancel	OS-level process kill (Task Manager, `kill -9`) — not a UI button	Cuts the conductor mid-anything. Bundle may not seal; recovery is best-effort on next launch.	n/a (no run-end event recorded)

The first two are the operator's normal escape hatches. The third is a last resort and is documented under crash recovery.

Stop run¶

Single click on Stop run during RUNNING. The conductor:

Stops admitting new method steps (the executor checks external_stop between steps and returns when set).
Lets the active procedure observe external_stop and run any cleanup it implements. A trailing method SafeShutdownStep is not automatically jumped to when a method is interrupted mid-step.
Disarms all workers via pool.disarm_all(grace_s=...). The conductor's shutdown_grace_s defaults to 5 seconds; on grace expiry a worker is hard-stopped and the run is marked degraded.
Finalizes the bundle (writer flush, two-stage Parquet rewrite, manifest seal).
Run-tab badge moves through DRAINING → FINALIZING → SEALED.

For method runs, put safe cooldown commands in the method or in a procedure finally block if they must run on abort. For free runs, drive the setpoint to a safe value via manual controls before clicking Stop if the adapter itself does not do that in stop().

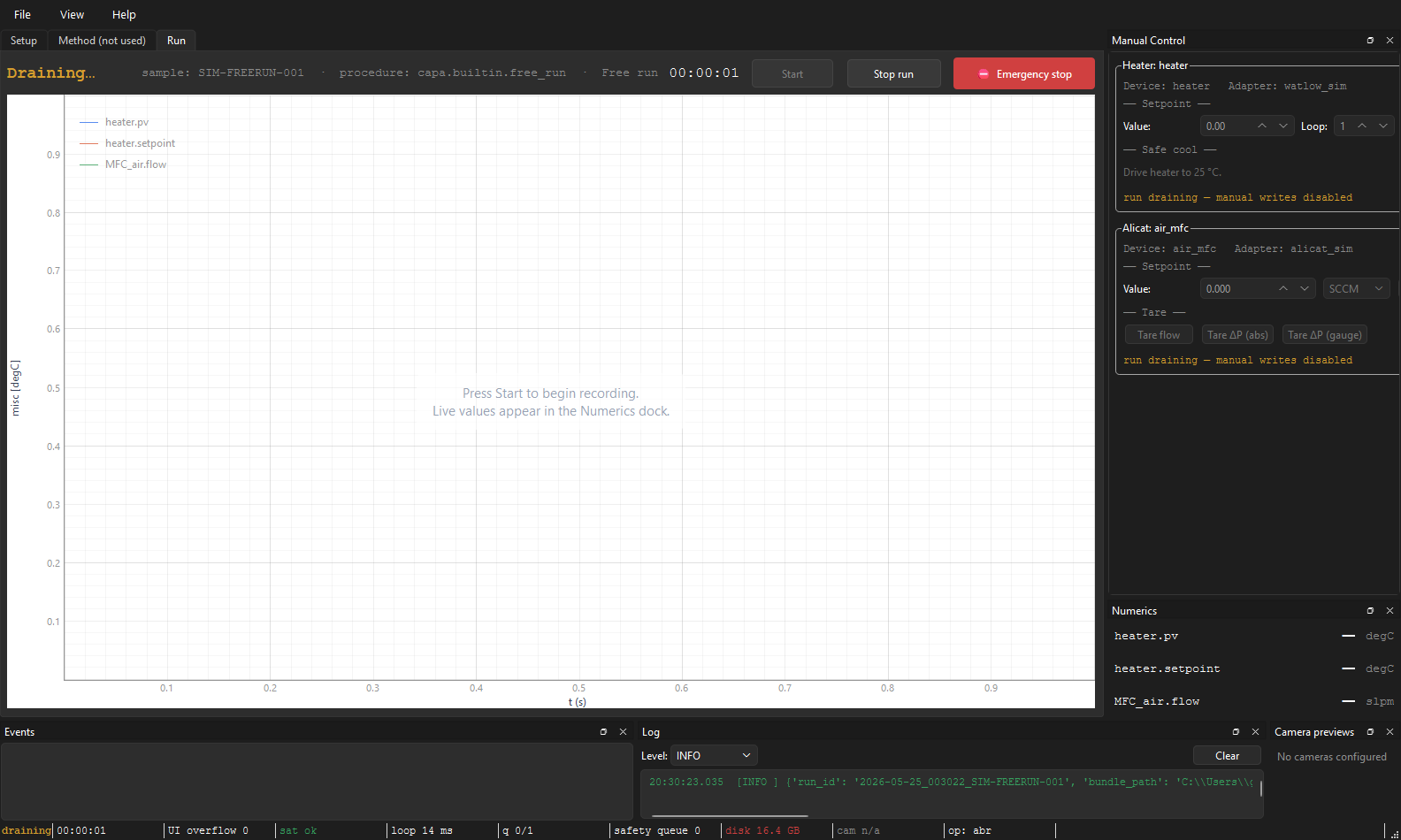

Run tab in DRAINING state: badge Draining… (amber), Start disabled, Stop/Emergency still enabled. Manual cards show run draining — manual writes disabled.

Always safe to click. Even during PREPARING (before the conductor fully exists), request_abort latches the request and forwards it the moment the conductor is constructed.

Emergency stop¶

⛔ Emergency stop requires a 1-second hold. The hold gate is there because a misclick on a long run is expensive — one second is short enough to feel responsive in a real emergency and long enough to dismiss a misclick by releasing.

On confirm, the conductor receives the same stop() call as Stop run. The difference is the recorded exit_reason — operator_immediate vs. operator_safe_shutdown — which downstream tooling can read off the manifest to know which path the operator took. The conductor itself does not run a different shutdown routine for the two buttons; any mode-specific cleanup must come from the active procedure.

Force-cancel (kill the process)¶

If the GUI is unresponsive — Stop and Emergency both ignored — the only remaining escape is to kill the process: Task Manager → End Task, or kill -9 <pid> on the terminal.

This leaves the bundle in open or finalizing state. The two-stage rewrite was designed so a tear mid-finalize is recoverable: the manifest's bundle_status field tells the next reader what state the bundle is in, and a partial Parquet at most loses the trailing block.

Recovery walk-through lives in crash recovery.

What ends up in the bundle¶

The manifest.json records the final state of the run. Three fields together tell you exactly what happened:

`run_status` — what the run did¶

Value	Means
`running`	Acquisition is active right now.
`completed`	Method or free-run ended normally.
`aborted`	Operator clicked Stop or Emergency.
`crashed`	Recovered/finalized after abnormal termination — the process died, the conductor crashed, or finalize fell into the recovery path.

`bundle_status` — what shape the bundle is in¶

Value	Means
`open`	Files may still be mid-write. Don't trust the data.
`finalizing`	Sinks closed, two-stage rewrite in progress.
`finalized_unverified`	Data is readable, integrity hashes pending.
`sealed`	`manifest.sha256` written; safe to copy/archive.
`verification_failed`	Enough finalized to inspect, but the integrity hash didn't match what was sealed.

`integrity.status` — whether the data hashes match¶

unknown / ok / mismatch / partial. Always check ok before trusting data from an aborted or crashed run.

Common combinations¶

Combination	What you actually got
`completed` + `sealed` + `ok`	Best case — the run ended naturally and everything's intact.
`aborted` + `sealed` + `ok`	Operator stopped a run cleanly. This is the expected combination after a Stop or Emergency. Recorded data through the abort point is fully trustworthy.
`crashed` + `sealed` + `ok`	The conductor died but recovery managed to seal the bundle. Data is trustworthy through the last flushed block. This is what the codebase calls `crashed_but_sealed` — a recoverable abnormal termination.
`aborted` + `verification_failed`	Disk problem during seal. The data is probably fine; the hash chain isn't. Treat as suspect.
`crashed` + `finalizing`	Process died mid-rewrite. Re-launch capa; finalize-on-startup will pick this up.
`running` + `open`	The bundle's owning process is still alive (or was killed without writing a final state).

The reviewing a run page walks through how to inspect these fields without opening the bundle in the app.

What you should do, by situation¶

Situation	Click	Why
Run is on schedule, you just want to end it early	Stop run	Cleanest path; procedure cleanup gets a chance to run.
Something looks wrong but the rig is responding	Stop run	Capture the data through the moment of concern; investigate from the sealed bundle.
Heater is overshooting hard, or a leak is suspected	Emergency stop	Fast operator-request path; still disarms and seals.
GUI has hung; buttons don't respond	Kill the process	Last resort. Restart capa, finalize-on-startup will recover the bundle.
Something is actively dangerous and you don't trust software at all	Hit the physical e-stop on the rig, then kill the process	The physical e-stop is outside capa's control path and is what you trust.

See also: The Run tab for the buttons themselves, Manual controls for setpoint changes before Stop, Shutdown sequence for the underlying safety contract, Crash recovery for force-cancel aftermath, Reviewing a run for inspecting the manifest's status fields.
